Script Studio: REST Endpoints

A script can be made available at its own web address, so that systems outside Jira can invoke it. This allows an external system to carry out work in Jira through logic the administrator controls, without being given Jira credentials of its own.

Note: This provides a route into Jira that its own configuration does not offer, and is one of the capabilities Script Studio adds for integrators.

Note: 📹 Video placeholder — creating an endpoint, copying its address and access token, calling it from an external tool, and reviewing the resulting execution.

1. Two methods of access

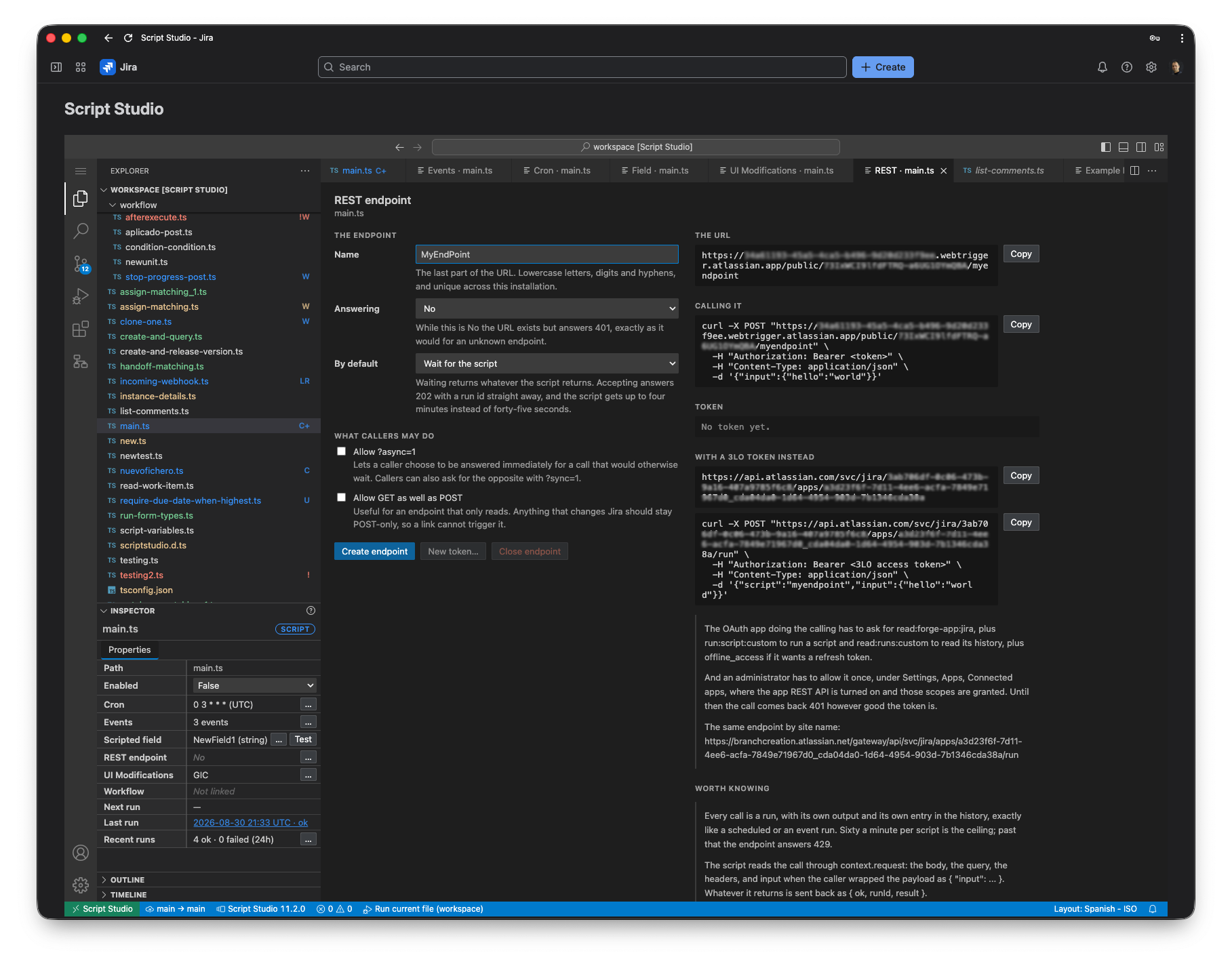

2. The endpoint configuration screen

Open the REST endpoint row in the Properties panel.

Endpoint settings

Options for callers

The access token

Note: The access token is displayed once, at the point at which it is issued, and cannot be retrieved afterwards. Copy it immediately. A replacement can be issued at any time, which invalidates the previous token.

Once issued, the screen shows only the final characters of the token and the date on which it was created.

Address and example call

The right-hand section provides the endpoint address, a ready-made example call, the status of the access token, and the equivalent details for the authenticated API. Each item can be copied directly.

3. Calling the endpoint

Direct address

curl -X POST "https://<endpoint-address>/nightly-sync" \
  -H "Authorization: Bearer <access token>" \
  -H "Content-Type: application/json" \
  -d '{"input":{"hello":"world"}}'

Authenticated API

curl -X POST "<base address>/run" \
  -H "Authorization: Bearer <OAuth access token>" \
  -H "Content-Type: application/json" \
  -d '{"script":"nightly-sync","input":{"hello":"world"}}'

Advanced: preparing the authenticated API

The calling application requires the scopes read:forge-app:jira, together with run:script:custom to run a script and read:runs:custom to read its history. Where a refresh token is required, offline_access is also needed.

An administrator must additionally authorise the calling application once, under Settings → Apps → Connected apps, where the application REST API is enabled and the scopes granted. Until this is done, calls are rejected regardless of the token supplied.

Two routes are available: /run to run a script, and /runs to read its execution history.

4. Handling the call within the script

The details of the call are available through context.request, which provides the method, the address requested, the request headers, the query parameters and the body. The input property contains the payload, whether the caller sent it directly or wrapped it.

/**
 * Creates a work item from an incoming webhook and returns its key.
 */
import { jira } from 'jira-api';

const PROJECT_KEY = 'SUP';
const ISSUE_TYPE = 'Task';
const MAX_SUMMARY = 250;

export default async function run(_getIssue, context: ScriptContext) {
  const request = context.request;
  if (!request) {
    console.log('Call the endpoint to test this script. The address is shown in Properties.');
    return undefined;
  }

  const payload = (request.input || {}) as { title?: string; labels?: string[] };
  const title = String(payload.title || '').trim();

  if (!title) {
    // The caller is another system, so the reason for the rejection is returned
    // in a form it can act upon.
    request.respond(400, { ok: false, error: 'A title is required.' });
    return undefined;
  }

  const created = await jira.post('/rest/api/3/issue', {
    body: { fields: {
      project: { key: PROJECT_KEY },
      issuetype: { name: ISSUE_TYPE },
      summary: title.slice(0, MAX_SUMMARY),
      labels: Array.isArray(payload.labels) ? payload.labels.slice(0, 10) : ['webhook']
    } }
  });

  console.log(`Created ${created.key} from "${title}"`);
  request.respond(201, { ok: true, key: created.key, id: created.id });
  return undefined;
}

Responding to the caller

• Return a value. The caller receives it together with a confirmation and an execution reference. This is sufficient in most cases.
• Use request.respond. This gives full control over the response status, body and headers. It is required for webhook verification, for responses that are not JSON, for returning specific error codes, and for responses larger than 4 KB.

5. Immediate and background processing

In background mode the outcome is not returned to the caller. It is available in the run history, using the execution reference supplied.

6. Operational notes

• Every call is recorded in the run history, with its output, in the same way as any other execution.
• Each script accepts up to 60 calls per minute.
• Setting Answering to No retains the configuration and the token.
• Issuing a new token invalidates the previous one immediately.
• Renaming or deleting the script removes the associated endpoint.

7. Troubleshooting
