Script Studio: UI Modifications

A script can change how fields behave on an issue's create, view or transition screen: hiding a field, making it required, setting its value, or reading what the user just typed. This is provided through Jira's UI Modifications capability, configured from within Script Studio.

Note: 📹 Video placeholder — hiding a field on the create screen until a prior field is filled in, and testing the result live.

1. Where this runs

Note: Unlike every other script type in Script Studio, a UI modification script runs in the user's browser, not on the server. It has a different, smaller set of capabilities as a result — see section 4.

2. Configuring a UI modification

Write the script and select it in the file tree.

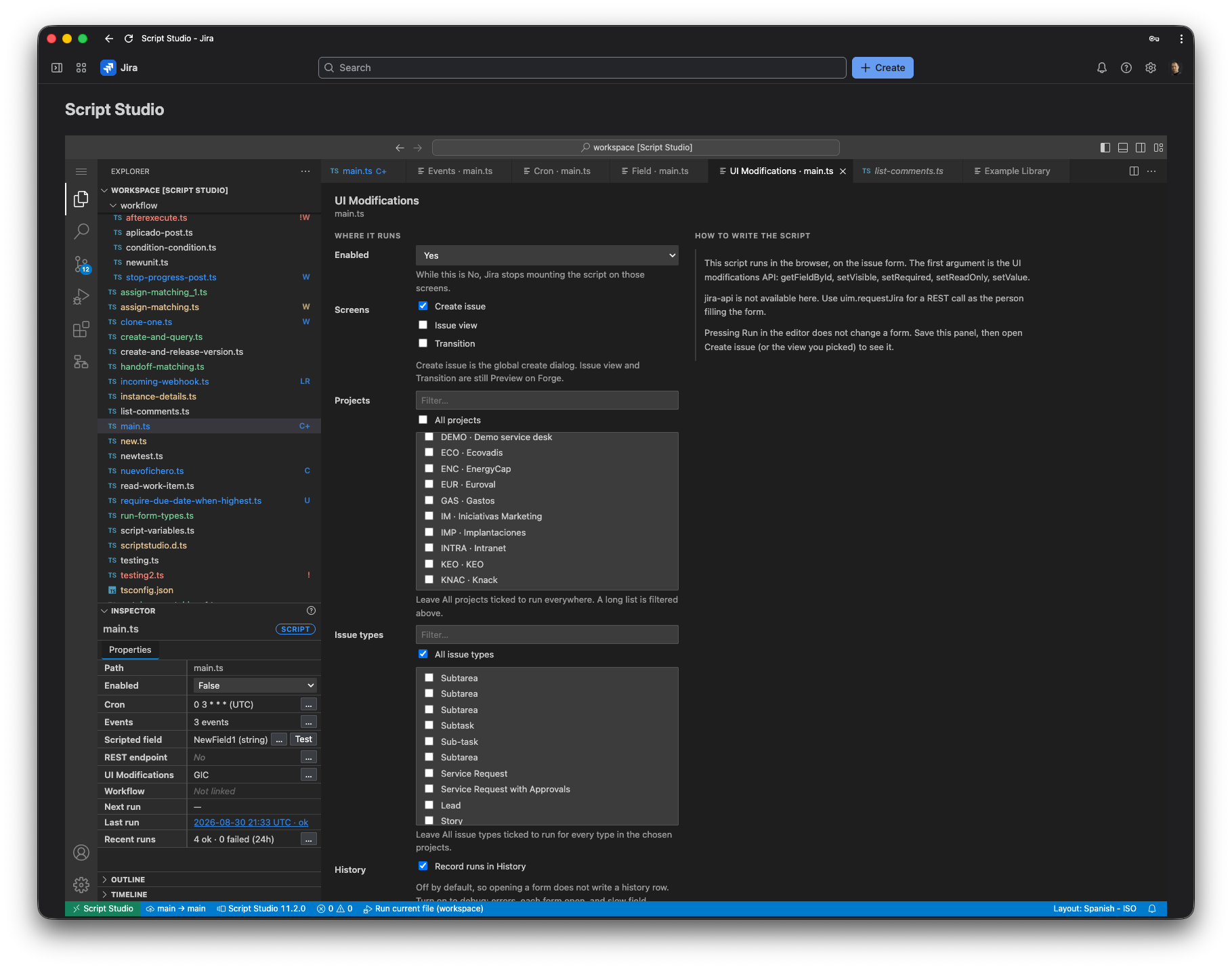

In the Properties panel, open the UI Modifications row (or use the Configure UI Modifications command). This opens a dedicated tab for the script.
Choose the screens, projects and issue types the script applies to.
Set Enabled to Yes.
Open the relevant Jira screen to see the effect. Pressing Run in the editor does not trigger a UI modification — only opening the actual form does.

3. Configuration options

Setting	Purpose
Enabled	While set to No, Jira does not run the script on any screen.
Screens	One or more of: the global create dialog, the issue view, and the transition screen. The last two are provided by Jira as a preview capability.
Projects	Restrict the script to specific projects, or leave set to all projects. A filter is provided for a long list.
Issue types	Restrict the script to specific issue types within the selected projects, or leave set to all issue types.
Record runs in History	Disabled by default, so that opening a form does not add an entry to the run history on every occasion. Enable temporarily to record failures, every form opening, and slow field changes, while investigating a problem.

4. Writing the script

A UI modification script is a default exported function, in the same shape as any other script, but its first argument is the field API rather than the Jira client.

export default async function run(uim: UiModifications, context: ScriptContext) {
  const priority = uim.getFieldById('priority');
  const justification = uim.getFieldById('customfield_10101');
  if (!priority || !justification) return;

  const isHighPriority = String(priority.getValue() || '') === '1'; // Highest
  justification.setVisible(isHighPriority);
  justification.setRequired(isHighPriority);
}

The field API

Method	Effect
`uim.getFieldById(id)`	Returns the field on the current screen, or nothing if it is not there.
`uim.getChangeField()`	The field that was just edited, when the script is running because a value changed.
`uim.getScreenTabById(id)`	Controls the visibility of a screen tab, and can bring it into focus.
`field.getValue()` / `setValue(value)`	Reads or sets the field's current value.
`field.isVisible()` / `setVisible(visible)`	Shows or hides the field.
`field.isReadOnly()` / `setReadOnly(readOnly)`	Locks or unlocks the field.
`field.setRequired(required)`	Marks the field as required or optional.
`field.getName()` / `setName(name)`, `getDescription()` / `setDescription(text)`	Reads or overrides the label and helper text shown for the field.

Calling Jira from within the script

The standard Jira client used elsewhere in Script Studio is not available here, since it calls the server on the application's own permissions. A UI modification script instead uses uim.requestJira(url, options), which makes the call as the person filling in the form, using their own permissions.

5. The execution context

The second argument carries context.trigger === 'uimod' and a populated context.uimod:

Property	Contents
`uimod.viewType`	Which screen the script is running on
`uimod.project`	The project of the issue being created or edited
`uimod.issueType`	The issue type selected
`uimod.issue`	The issue being viewed or transitioned. Not present on the create screen.
`uimod.changeFieldId`	The identifier of the field that triggered this run, when applicable

6. Points to note

A script runs once when the form opens, and again whenever a field it reads changes — Script Studio works out which fields to watch from the script's own calls to getFieldById.
A script that fails writes to the browser console rather than to the Jira screen, so a silent failure should be checked there first, or diagnosed by temporarily enabling Record runs in History.
Deleting the script, or switching all screens off, removes the UI modification from Jira as well.

7. Troubleshooting

Symptom	Action
Nothing happens on the form	Confirm Enabled is set to Yes, and that the project and issue type of the form match the configuration.
Pressing Run in the editor has no visible effect	Expected. Open the actual Jira screen to see a UI modification in effect.
A field is not found	Confirm the field is actually present on that screen, and that its identifier is correct.
The script appears to fail silently	Enable Record runs in History and check the browser console.
A REST call from the script is rejected	The call is made as the person filling in the form, so it is limited to what that person, rather than the application, is permitted to do.
